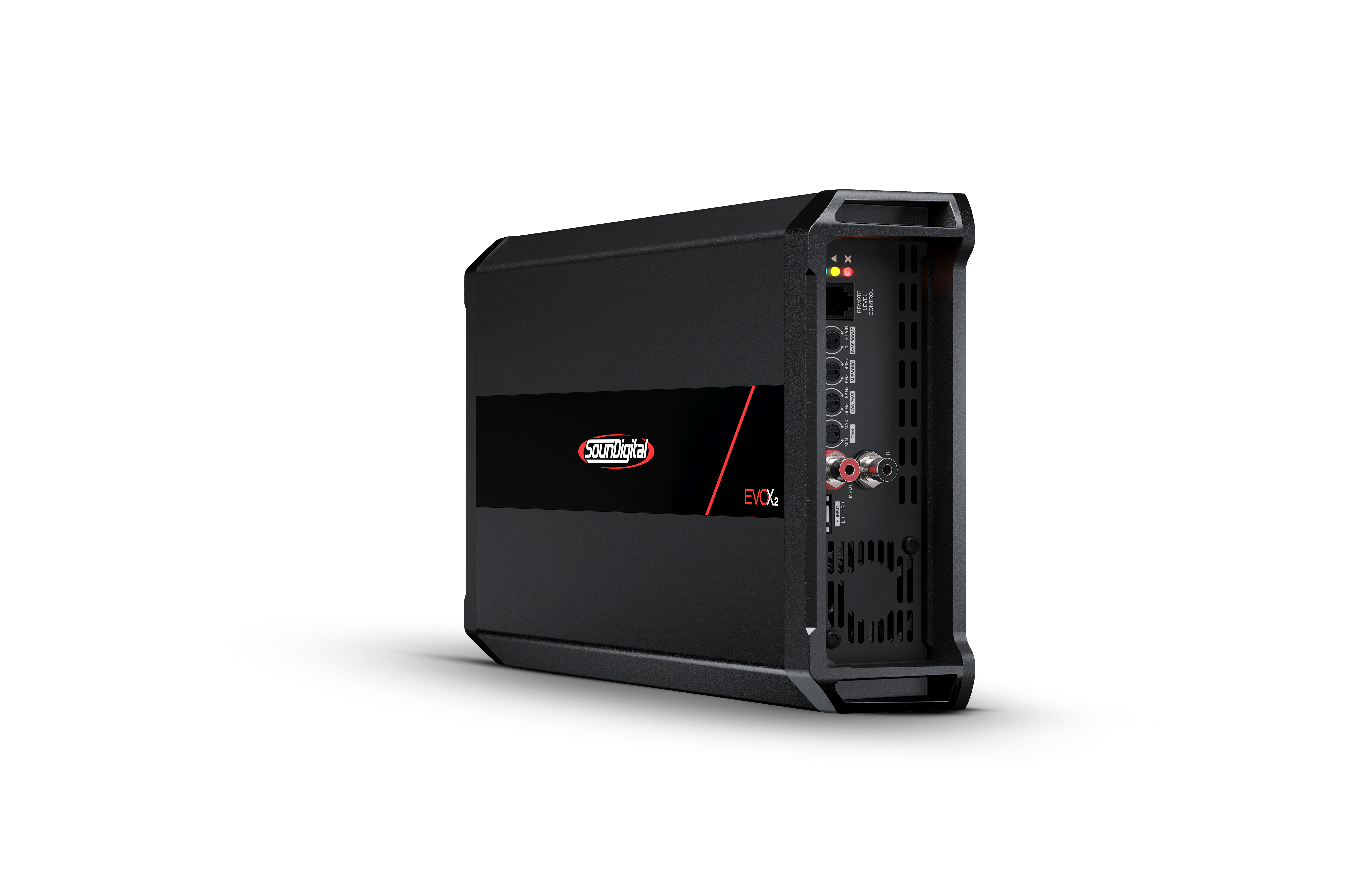

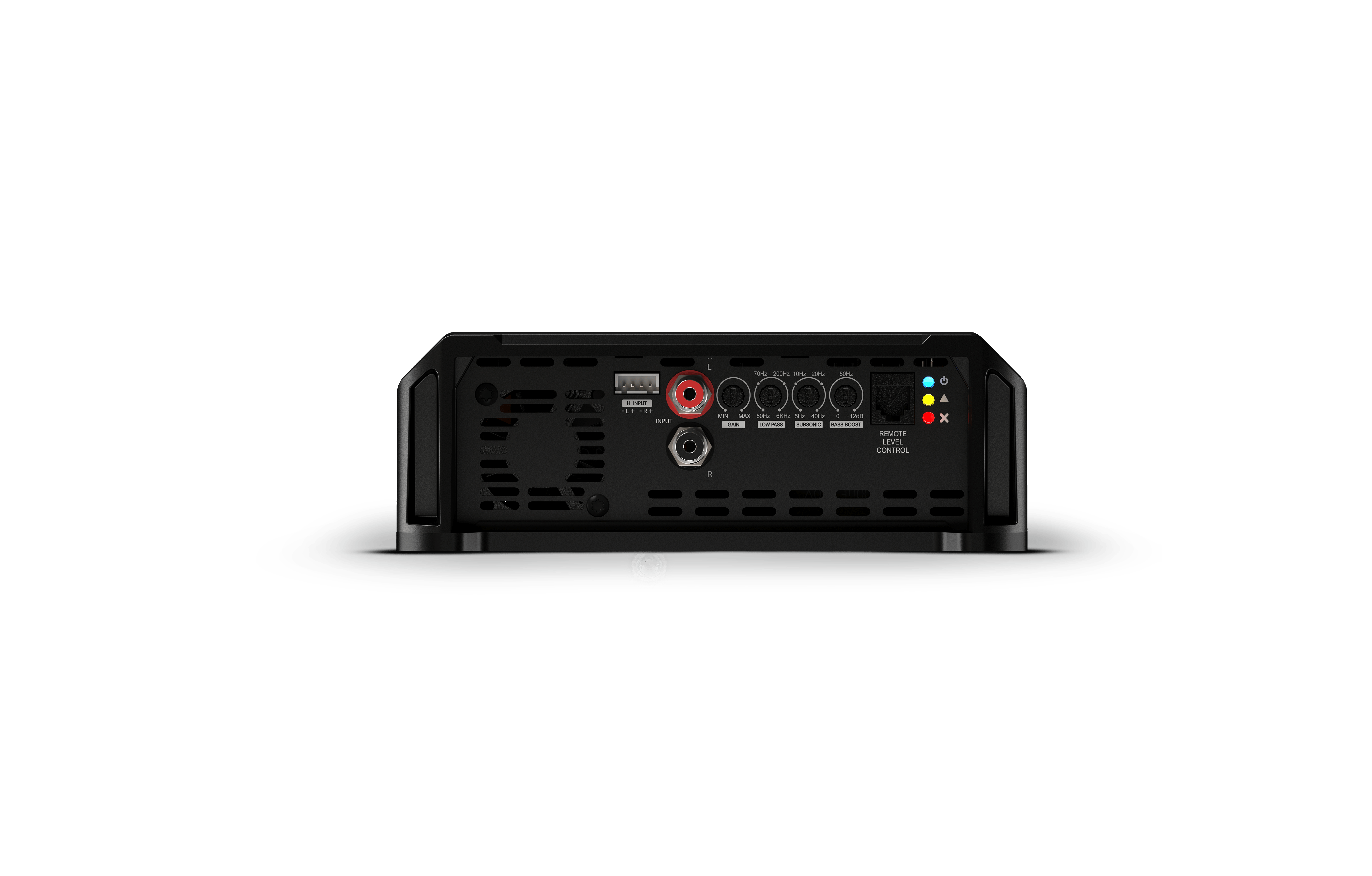

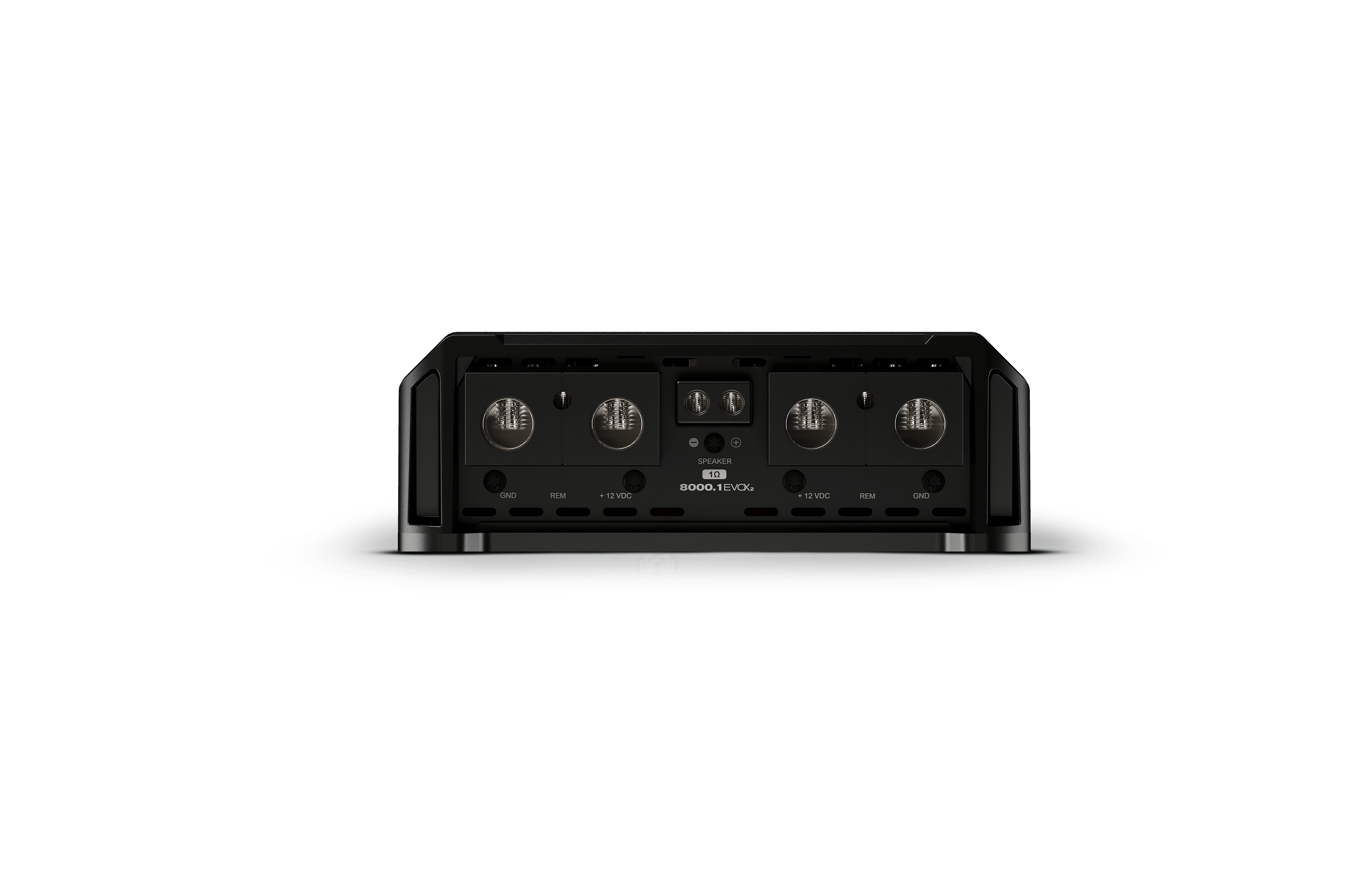

8000.1 EVOX2
The 8000.1 EVOX2 is a compact, modern amplifier that delivers 8000W RMS of power over 1 channel.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Available in versions:
Instruction manualGeneral Specifications
+
-
8000.1 EVOX2 – 1 OHM
Power @ 1Ω: 1 X 8000 WRMS
Power @ 2Ω: 1 X 5280 WRMS
Power @ 4Ω: 1 X 3485 WRMS8000.1 EVOX2 – 2 OHMS
Power @ 1Ω: N/A
Power @ 2Ω: 1 X 8000 WRMS
Power @ 4Ω: 1 X 5280 WRMSFrequency Response (-3dB):
5Hz ~ 6kHz
Subsonic Filter (12dB/oct.):
5Hz ~ 40Hz
Low Pass Filter (12dB/oct.):
50Hz ~ 6kHz
Bass Boost:
0dB ~ 12dB @ 50Hz
Operating Voltage:
8V ~ 16V
SNR:
82dB
Input Sensitivity (RCA):
1Ω: 0.19V ~ 2.23V
2Ω: 0.19V ~ 2.29VInput Sensitivity (High Level input):
1Ω: 1.32V ~ 15.52V
2Ω: 1.33V ~ 15.99VCurrent Draw (music):
343A
Current Draw (max.):
686A
Total Efficiency:
81%
Damping Factor (@100Hz nominal impedance):
>2000
Power Cable:
70mm² / 00 AWG
Speaker Cable:
2 x 6 mm² / 9 AWG
Recommended Fuse* (music):
400A
Recommended Battery (minimum):
400Ah
Width:
7.1 in
Length:
12.2 in
Height:
2.5 in
Weight:
4.00 kg
