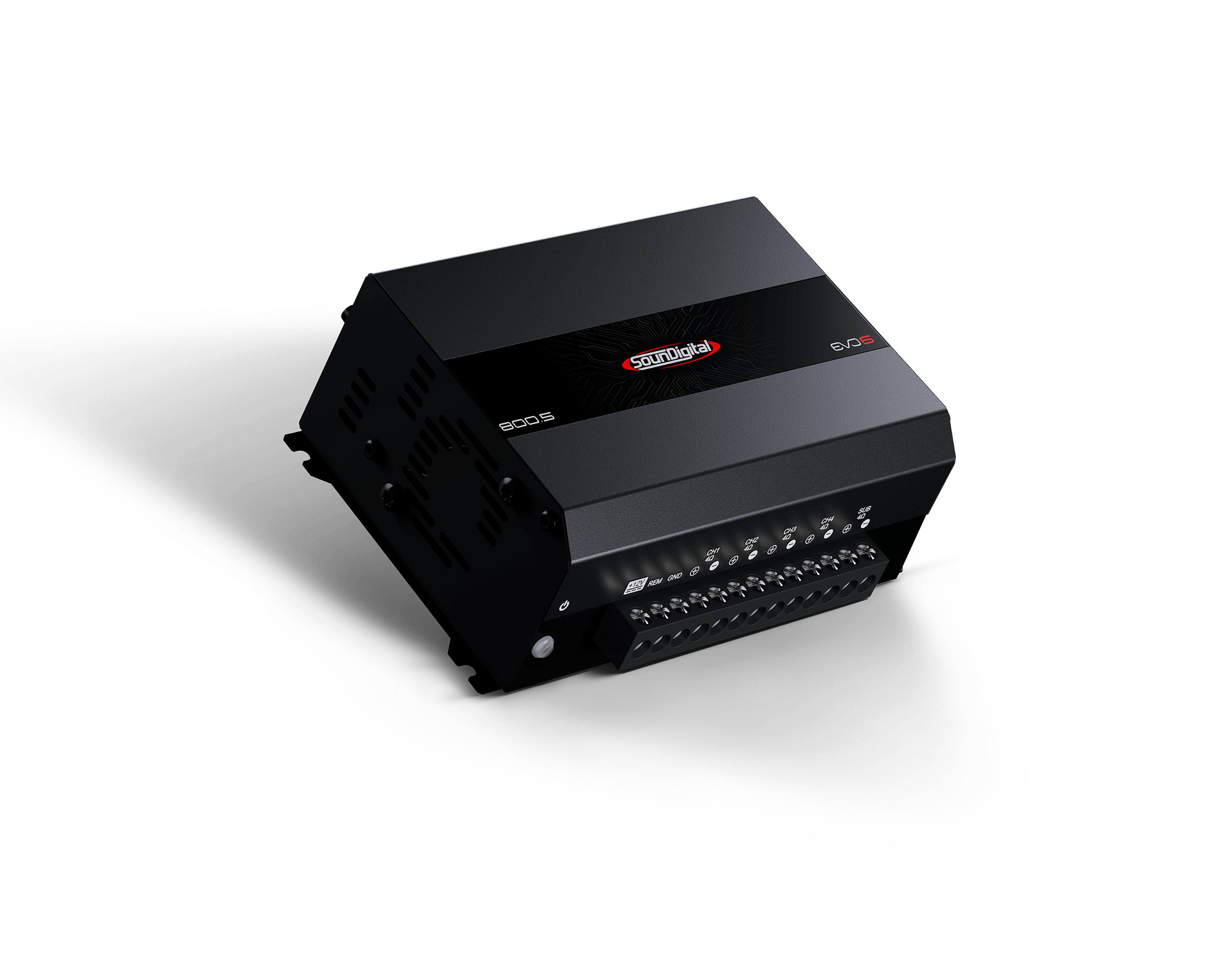

800.5 EVO6
The 800.5 EVO6 is a compact, modern amplifier that delivers 800W RMS of power over 5 channels.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Available in versions:
Instruction manualGeneral Specifications
+
-
800.5 EVO6 – 4 OHMS
Power @ 4Ω: 4 x 100W RMS
Power @ 8Ω: 4 x 66W RMS
SUBWOOFER: 4Ω: 1 x 400W
Bridge Power @ 8Ω: 2 X 200W RMS
SUBWOOFER: 8Ω: N/AFrequency Response (-3dB):
80Hz ~ 25kHz
SUBWOOFER: 5Hz ~ 80HzLow Pass Filter (12dB/octave):
80Hz
High Pass Filter (12dB/octave):
80Hz
Operating Voltage:
9V ~ 16V
SNR:
103.88dB
SUBWOOFER: 102dBInput Sensitivity (RCA):
0.2V ~ 2V
Current Draw (music):
39A
Current Draw (max.):
78.7A
Total Efficiency:
80%
Damping Factor (@100Hz nominal impedance):
200
Power Cable:
10mm² (7 AWG)
Speaker Cable:
1.5mm² (15 AWG) / 2.5mm² (13 AWG)
Recommended Fuse (music):
40A
Recommended Battery (minimum):
60Ah
Width:
6.01" / 15,7 cm
Lenght:
4.52" / 11,7 cm
Height:
2.07" / 5,5 cm
Weight:
0.74 kg / 1.63 lb
