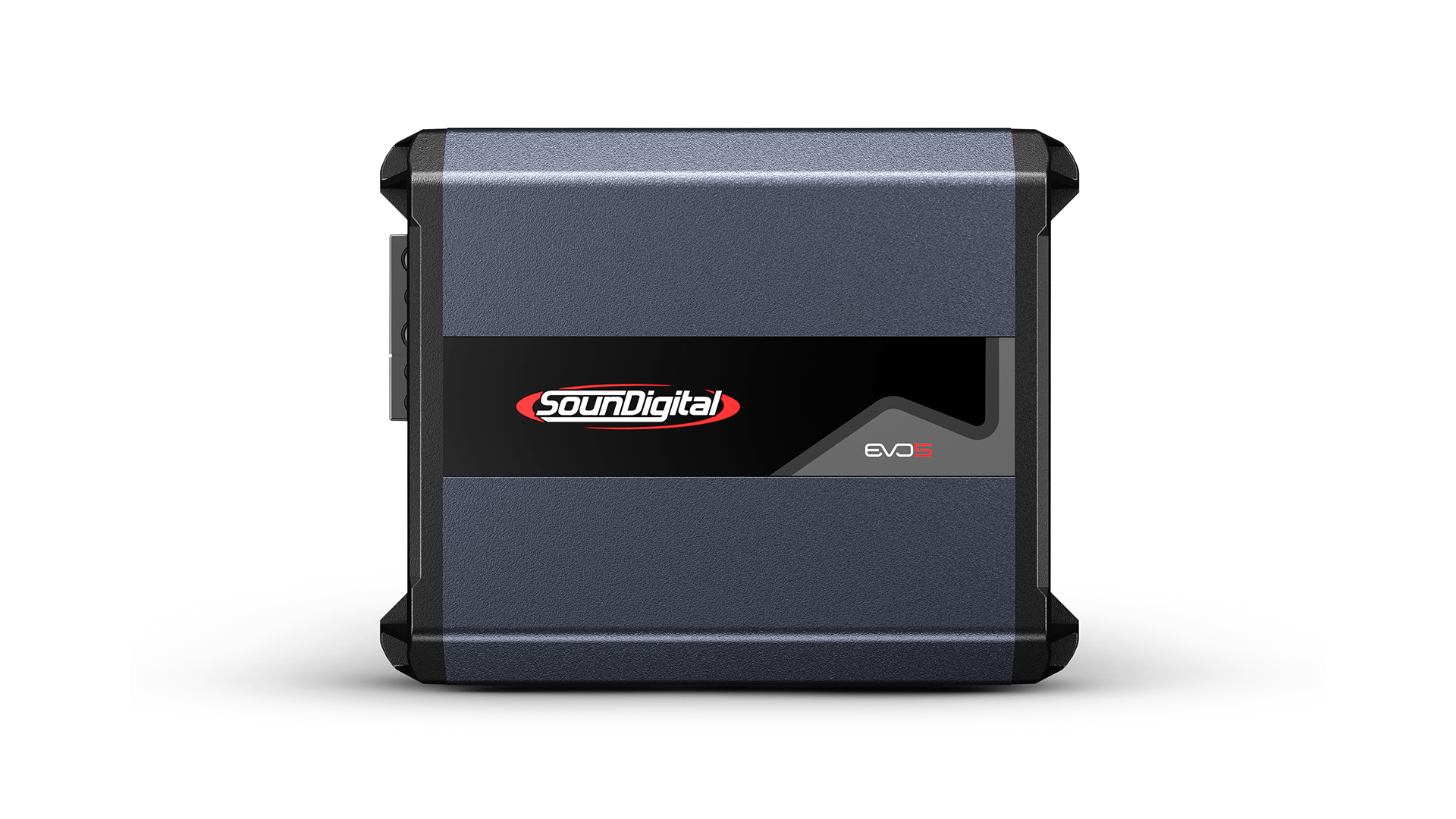

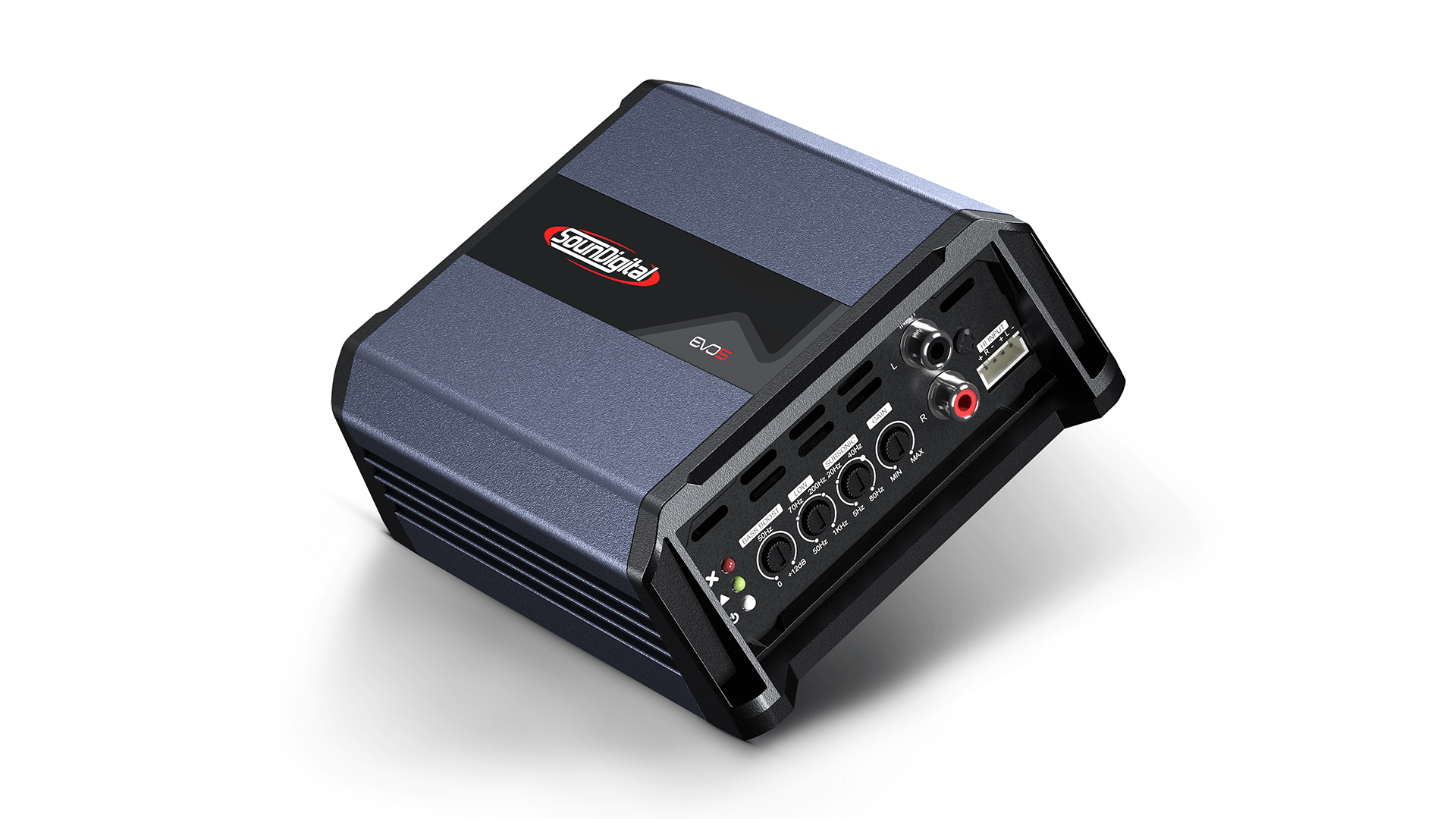

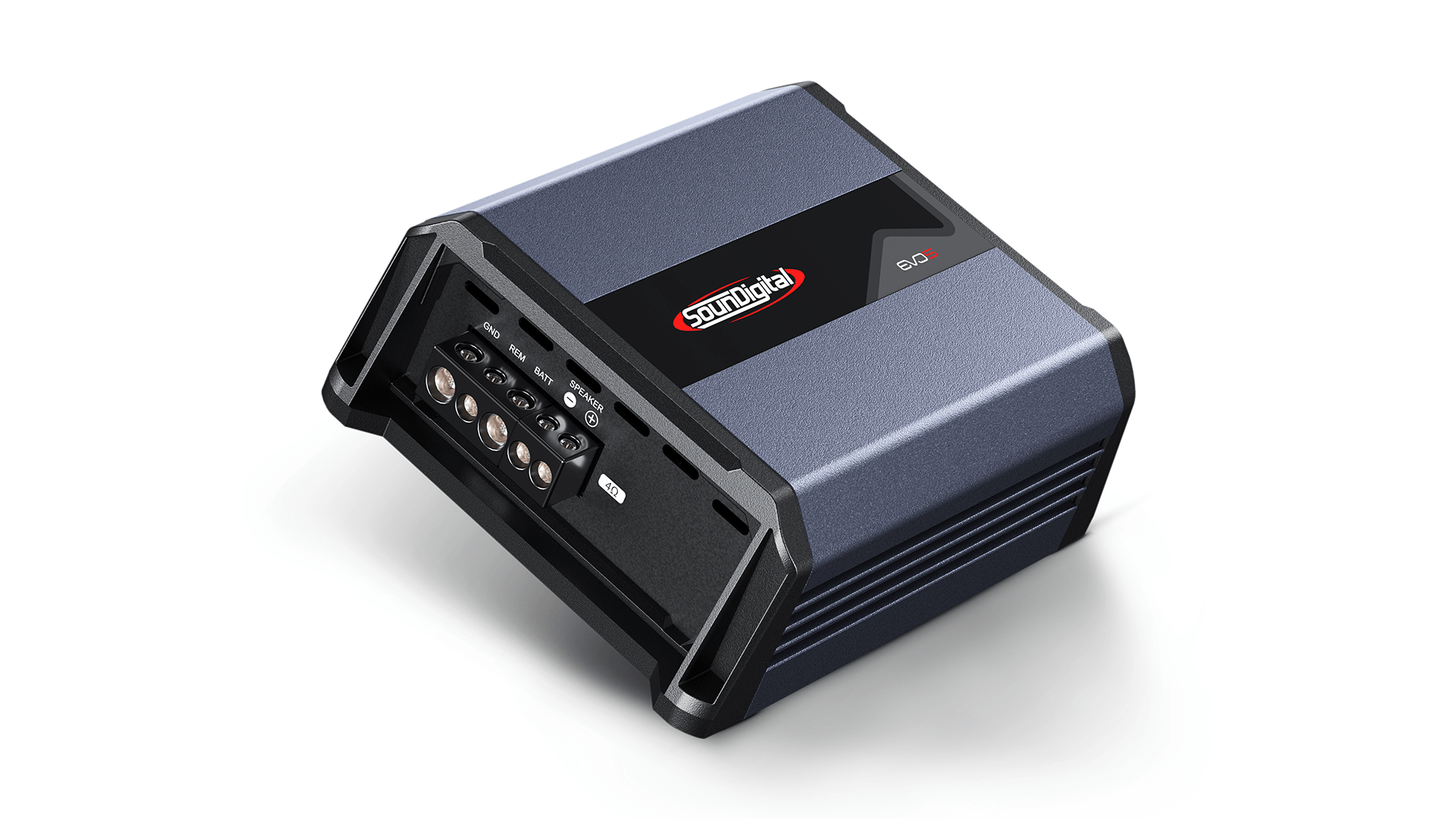

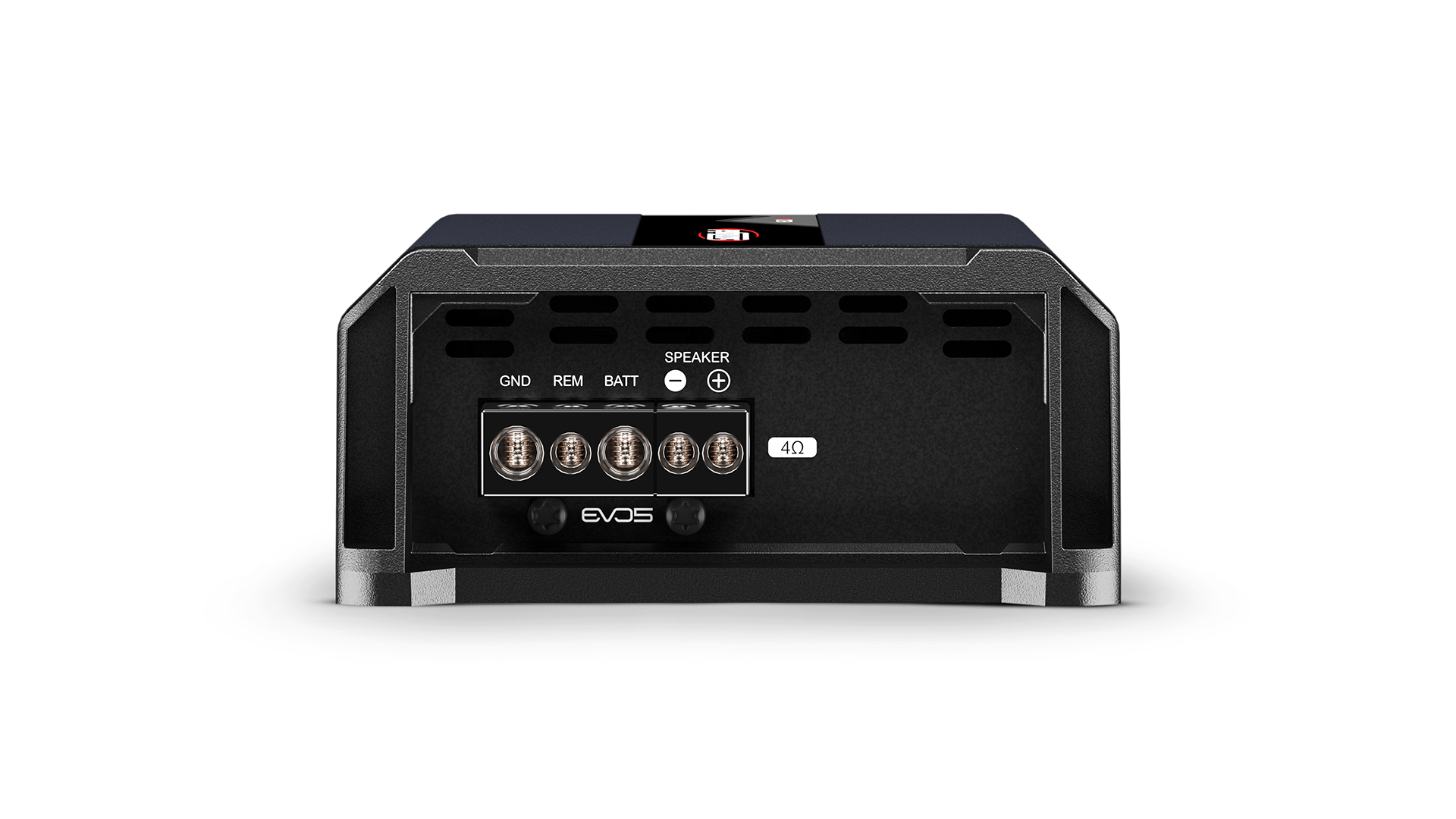

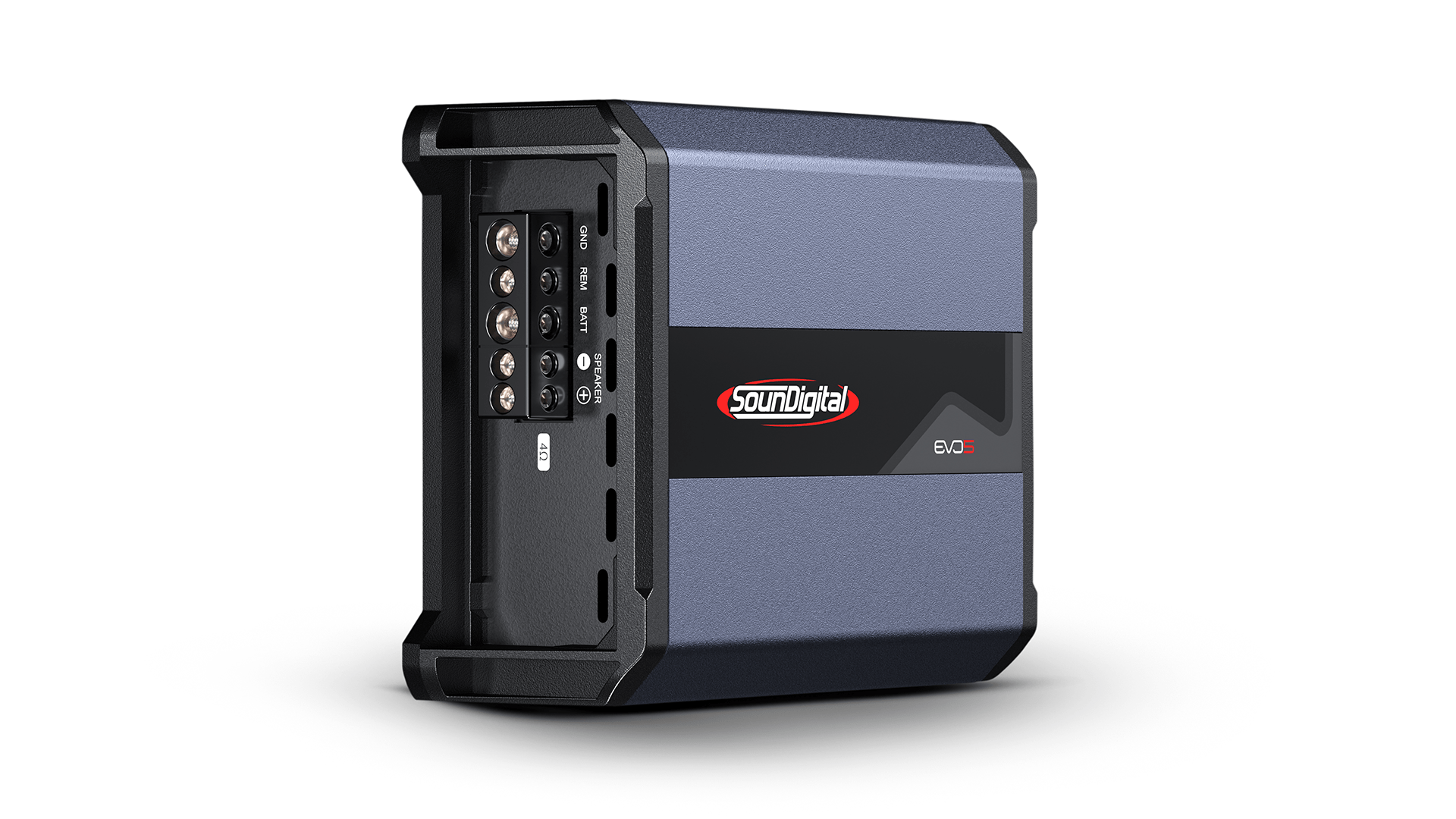

800.1 EVO 5
The 800.1 EVO 5 is a compact, modern amplifier that delivers 800W RMS of power distributed over 1 channel.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Available in:
Instruction manualGeneral Specifications
+
-
800.1 EVO 5 – 2 OHMS
Power @ 2Ω: 800W
Power @ 4Ω: 535W
Power @ 8Ω: 348W800.1 EVO 5 – 4 OHMS
Power @ 2Ω: N/A
Power @ 4Ω: 800W
Power @ 8Ω: 528WFrequency Response:
10Hz ~ 20kHz
Subsonic Filter (HP 12dB/8º):
10Hz ~ 80Hz
Low Pass Filter (LP 12dB/8º):
50Hz ~ 20kHz
Operating Voltage:
8V ~ 16V
SNR:
2Ω: 96dB
4Ω: 97dBInput Sensitivity (RCA):
0.2V ~ 4V
Input Sensitivity (High Level input):
1.5V ~ 15V
Current Draw (Music):
2Ω: 40,8A
4Ω: 38,7ACurrent Draw With Resistive Load (1kHz @ 12.6V):
2Ω: 81,6A
4Ω: 77,4ATotal Efficiency:
2Ω: 79,4%
4Ω: 78,9%Damping Factor (@100Hz Rated Impedance):
200
Power Cable:
10mm² (7AWG)
Audio Output Cable:
2 x 2mm² (12 AWG)
Recommended Fuse (Music):
40A
Recommended Battery (Music):
60Ah
Width:
4.4 in / 11,3 cm
Length:
5.8 in / 14,8 cm
Height:
2 in / 5,1 cm
Weight:
1.54 lb / 0,7 Kg
