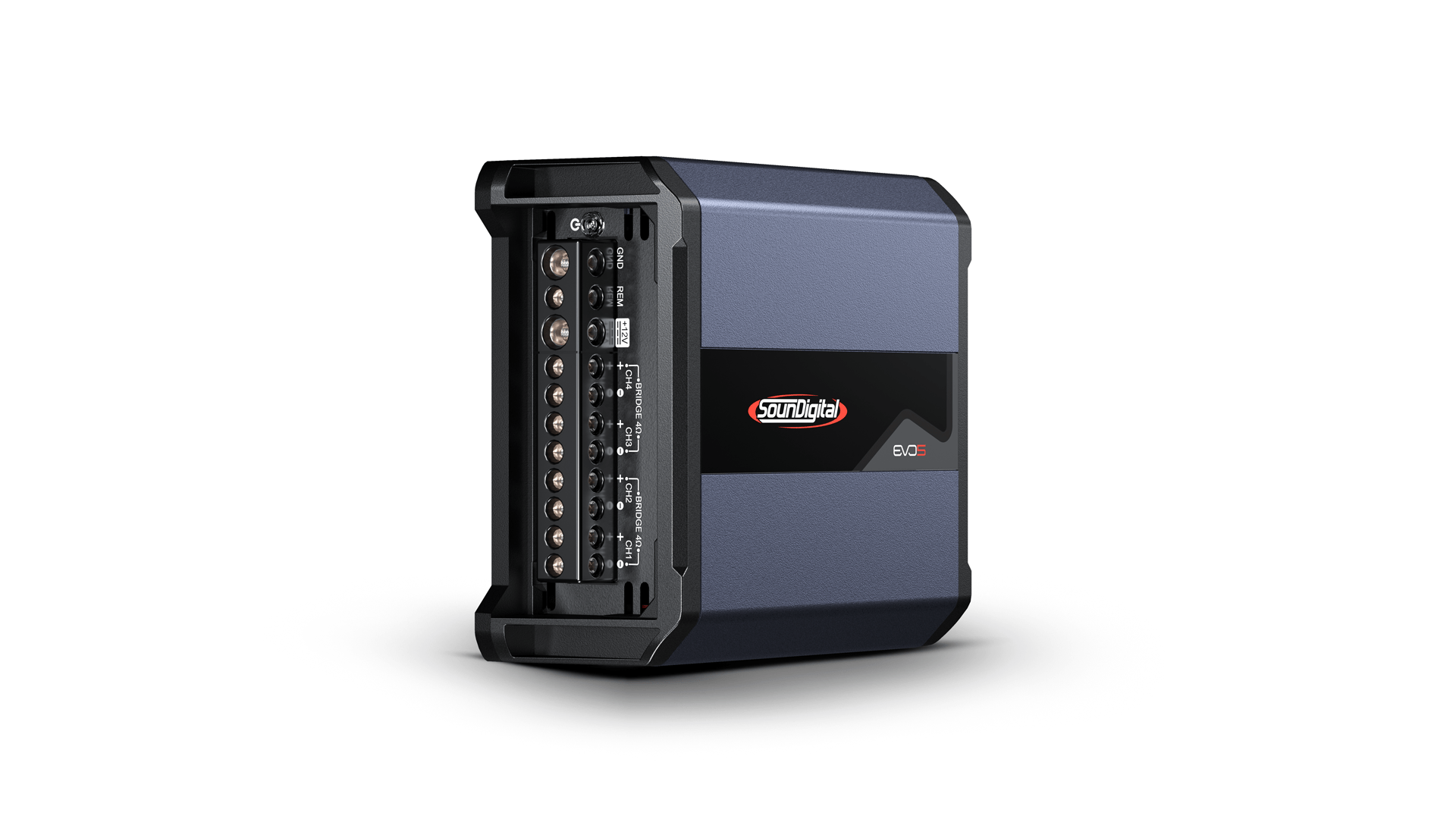

600.4 EVO 5

The 600.4 EVO 5 is a compact, modern amplifier that delivers 600W RMS of power distributed over 4 channels.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Available in:

Instruction manual

General Specifications

600.4 EVO 5 – 4 OHMS
Power @ 2Ω: 4 x 150W
Power @ 4Ω: 4 x 100W

Bridge Power @ 4Ω: 2 x 300W
Bridge Power @ 8Ω: 2 X 198W
Frequency Response (-3dB):
10Hz ~ 20kHz
Low Pass Filter:
80Hz
High Pass Filter:
80Hz
Operating Voltage:
8V ~ 16V
SNR:
88dB
Input Sensitivity:
0.2V ~ 2V
Current Draw (Music):
27A
Current Draw With Resistive Load:
54A
Total Efficiency:
88%
Damping Factor:
200
Power Cable:
10mm² (7AWG)
Audio Output Cable:
2 x 1.5 mm² (15 AWG)
Recommended Fuse (Music):
40A
Recommended Battery:
40Ah
Width:
4.45 in / 11.3 cm
Length:
5.33 in / 13.5 cm
Height:
2 in / 5.09 cm
Weight:
0.66 Kg
