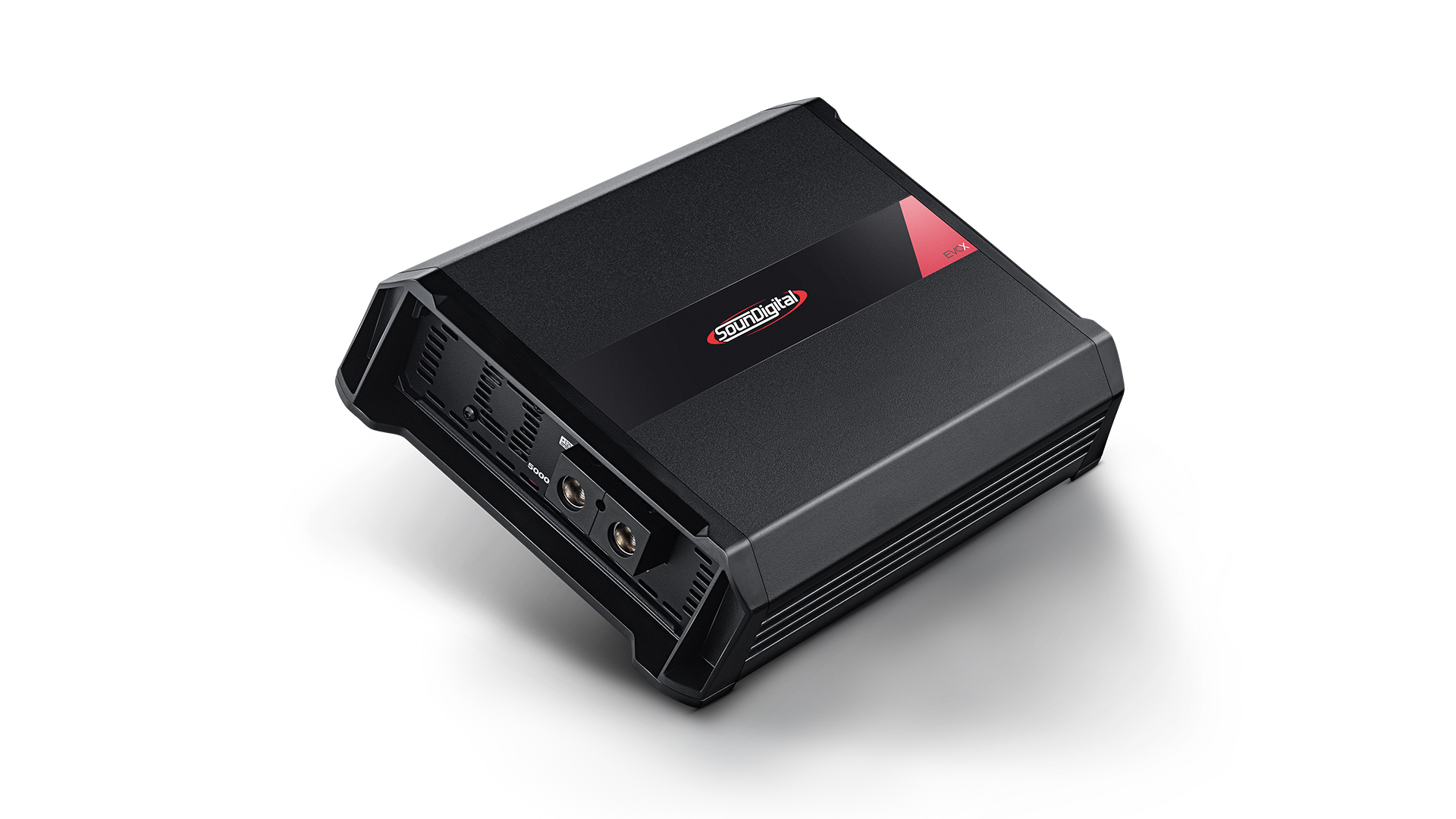

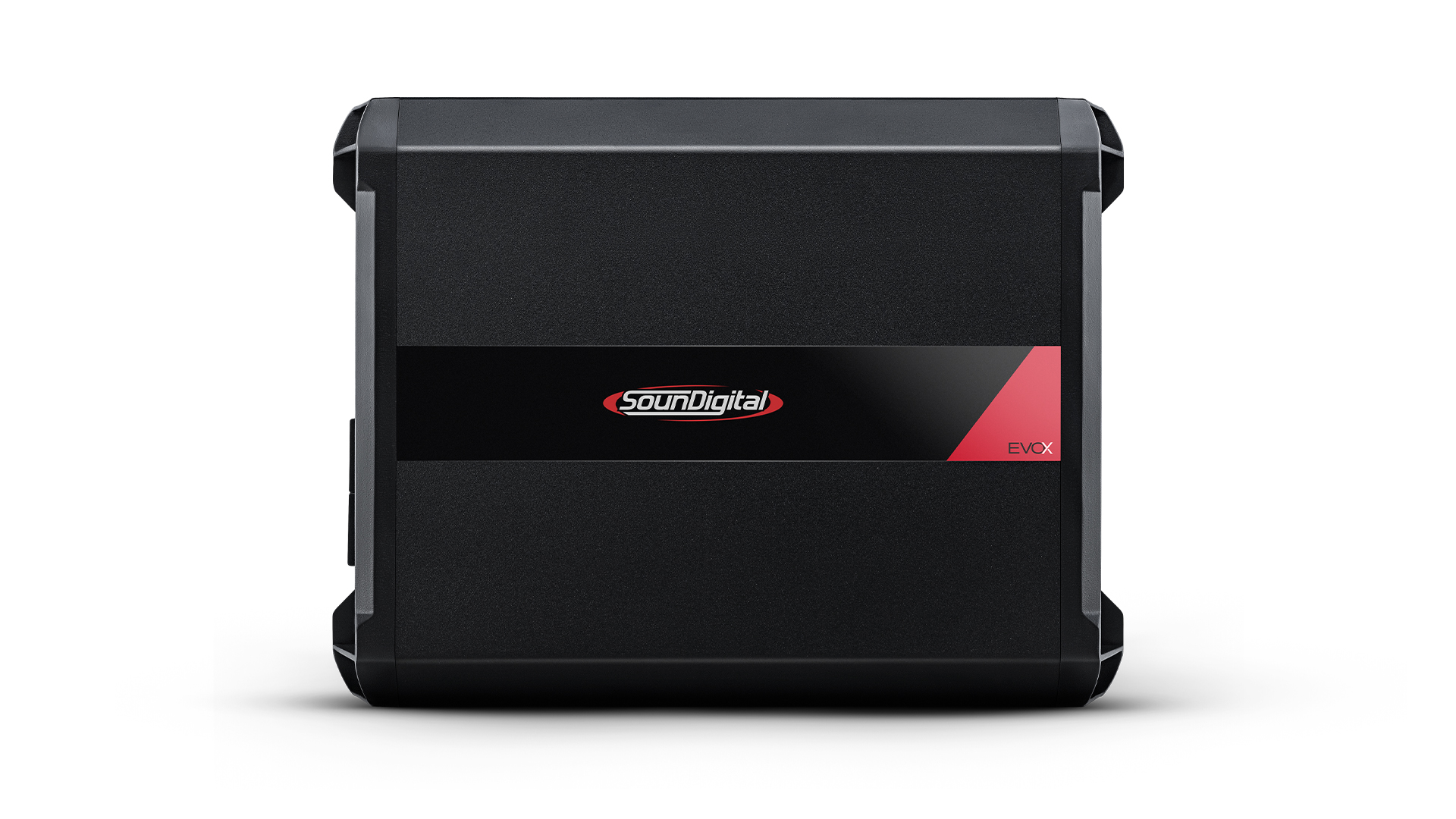

5000.1 EVOX

The 5000.1 EVOX is a compact, modern amplifier that delivers 5000W RMS of power over 1 channel.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Available in versions:

Instruction manual

General Specifications

5000.1 EVOX – 1 OHM
Power @ 1Ω: 1 X 5000W RMS
Power @ 2Ω: 1 X 3300W RMS
Power @ 4Ω: 1 X 2178W RMS
5000.1 EVOX – 2 OHMS
Power @ 1Ω: N/A
Power @ 2Ω: 1 X 5000W RMS
Power @ 4Ω: 1 X 3300W RMS
Operating Voltage:
8V – 16V
Current Draw (Music):
254A
Current Draw (Max):
509A
Recommended Fuse (Music):
250A
Total Efficiency:
78%
Damping Factor:
>1000
Frequency Response (-3dB):
5Hz – 500Hz
SNR:
84dB
Subsonic:
5Hz – 30Hz
Crossover LP:
50Hz – 500Hz
Width:
8.8 in / 22,5 cm
Length:
11.8 in / 29,9 cm
Height:
2.8 in / 7,1 cm
Weight:
3,3 Kg
