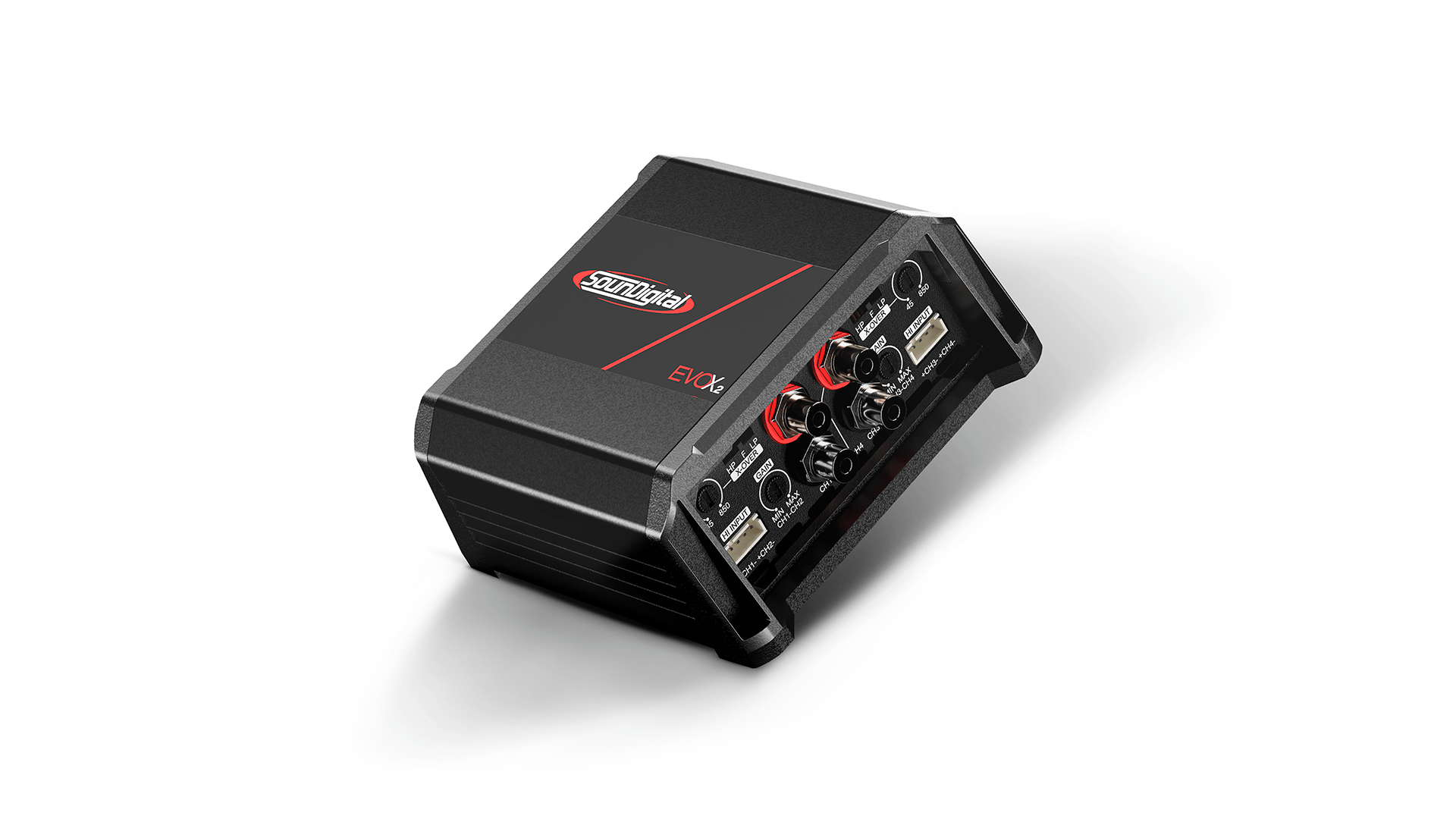

400.4 EVOX2
The 400.4 EVOX2 is a compact, modern amplifier that delivers 400W RMS of power distributed over 4 channels.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Available in:
Instruction manualGeneral Specifications
+
-
400.4 EVOX2 – 4 OHMS
Power @ 2Ω: 4 X 100 WRMS
Power @ 4Ω: 4 X 66 WRMS
Power @ 8Ω: 4 X 44 WRMS
Bridge Power @ 4Ω: 2 X 200 WRMS
Bridge Power @ 8Ω: 2 X 132 WRMSFrequency Response (-3dB):
5Hz ~ 22kHz
Low Pass Filter (12dB/Oct.):
45Hz ~ 850Hz
High Pass Filter (12dB/Oct.):
45Hz ~ 850Hz
Operating Voltage:
8V ~ 16V
SNR:
96dB
Input Sensitivity:
RCA: 0.2 ~ 2V
High Level: 1.5 ~ 15VCurrent Draw (Music):
17A
Current Draw (Max.):
34A
Total Efficiency:
83%
Damping Factor:
200
Power Cable:
10mm² (8 AWG)
Audio Output Cable:
2 x 1.5mm² (15 AWG)
Recommended Fuse (Music):
20A
Recommended Battery (Minimum):
20Ah
Width:
4.4 in
Length:
4.8 in
Height:
2 in
Weight:
0.58 Kg
