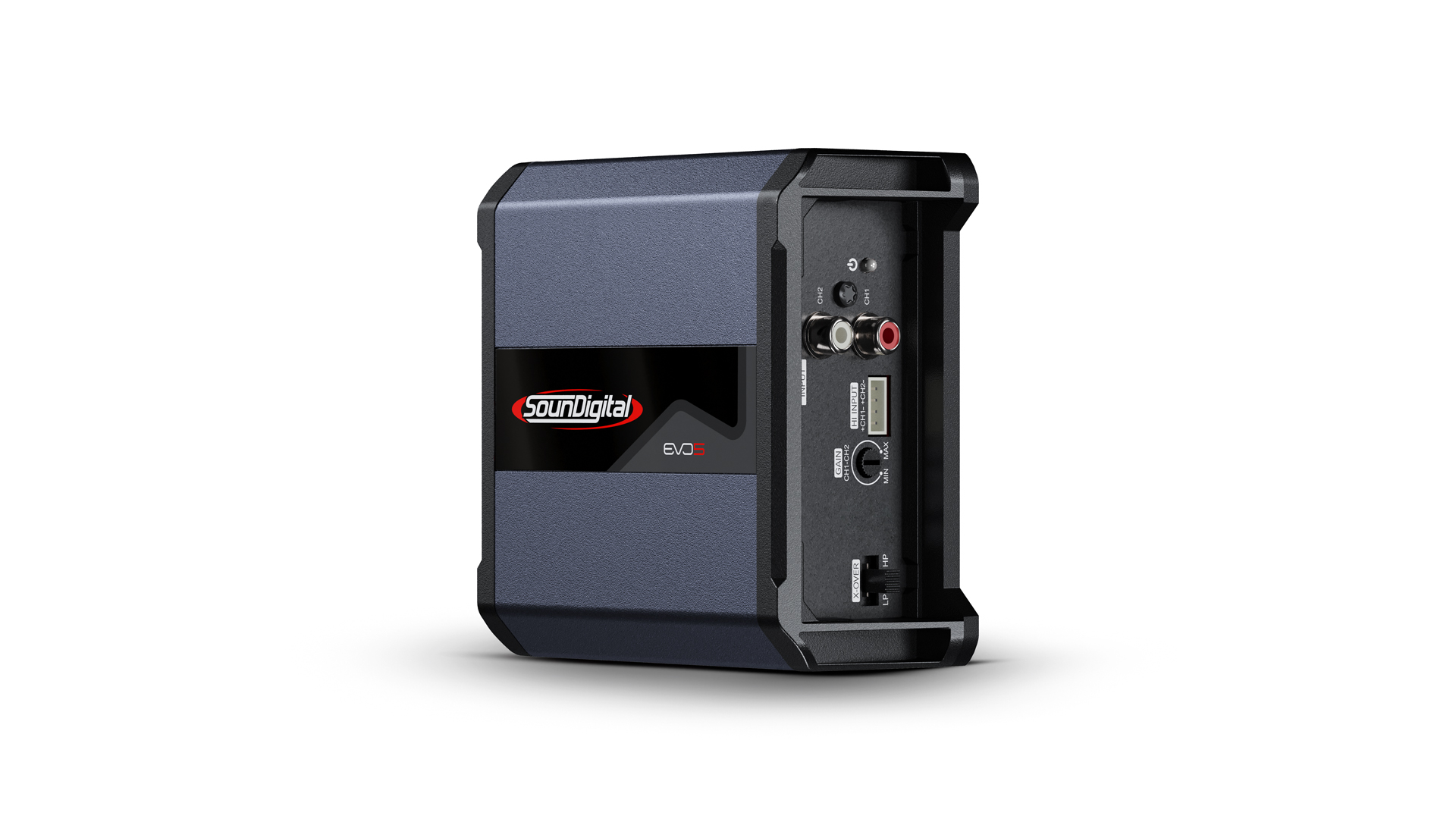

400.2 EVO 5
The 400.2 EVO 5 is a compact, modern amplifier that delivers 400W RMS of power distributed over 2 channels.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Available in:
Instruction manualGeneral Specifications
+
-
400.2 EVO 5 – 4 OHMS
Power @ 1Ω: N/A
Power @ 2Ω: 2 x 200W
Power @ 4Ω: 2 x 132W
Bridge Power @ 4Ω: 1 x 400W
Bridge Power @ 8Ω: 1 X 264WFrequency Response (-3dB):
10Hz ~ 20kHz
Low Pass Filter:
80Hz
High Pass Filter:
80Hz
Operating Voltage:
8V ~ 16V
SNR:
90dB
Input Sensitivity:
0.2V ~4V
Current Draw (Music):
18A
Current Draw With Resistive Load:
36A
Total Efficiency:
88%
Damping Factor:
200
Stereo Channel Minimum Impedance:
2Ω
Bridge Minimum Impedance:
4Ω
Recommended Fuse (Music):
20A
Recommended Battery (Minimum):
35Ah
Width:
4.4 in / 11.3 cm
Length:
4.7 in / 12.1 cm
Height:
2 in / 5.1 cm
Weight:
0.48kg
