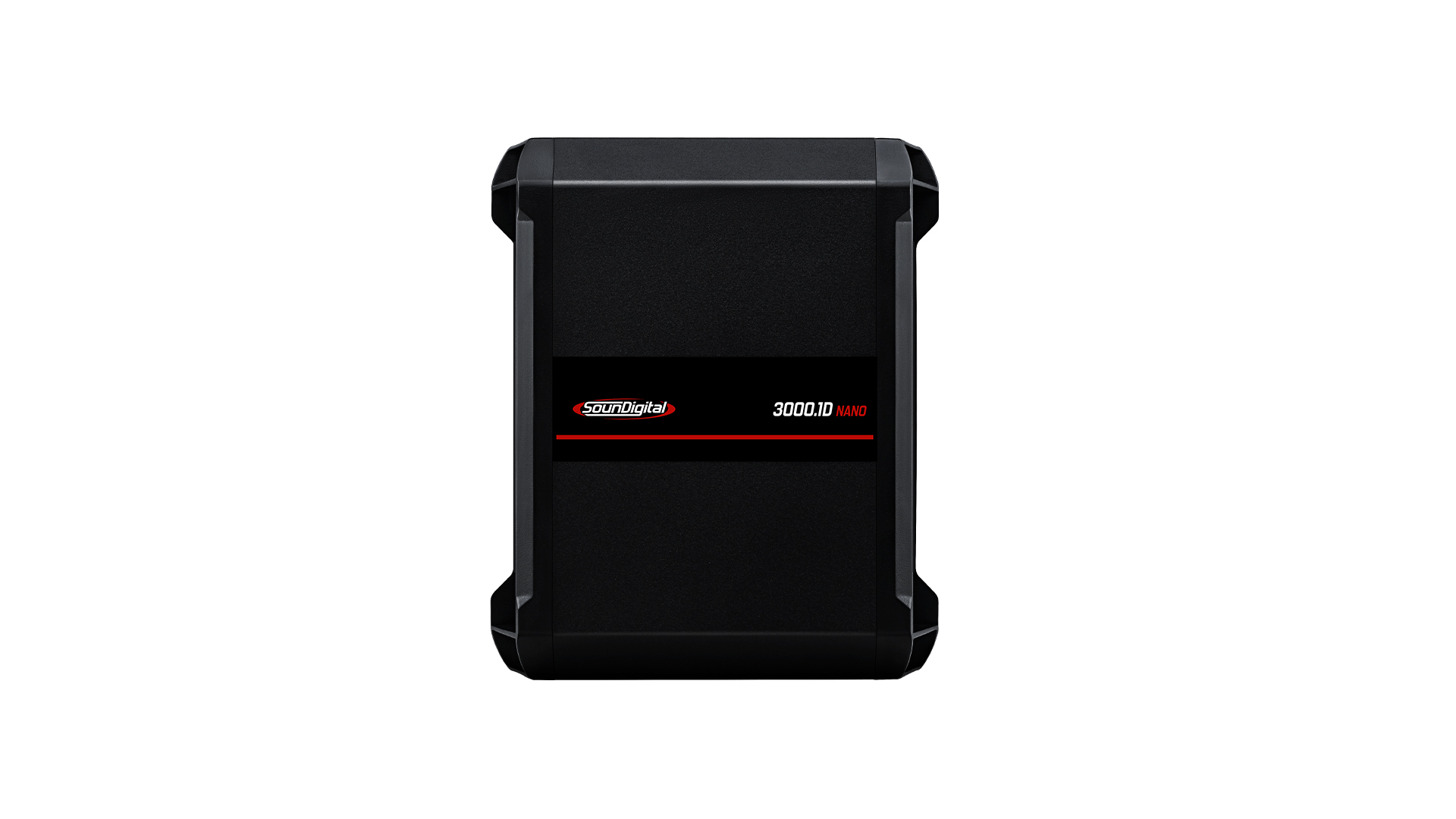

3000.1D NANO

The 3000.1D NANO is a compact, modern amplifier that delivers 3000W RMS power in 1 channel.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Available in:

Instruction manual

General Specifications

3000.1D NANO – 1 OHM
Power @ 1Ω: 1 X 3000W RMS
Power @ 2Ω: 1 X 1650W RMS
Power @ 4Ω: 1 X 908W RMS
3000.1D NANO – 2 OHMS
Power @ 1Ω: N/A
Power @ 2Ω: 1 X 3000W RMS
Power @ 4Ω: 1 X 1650W RMS
Operating Voltage:
8V – 16V
Current Draw (Music):
150A
Current Draw (Max):
302A
Recommended Fuse (Music):
150A
Total Efficiency:
79%
Damping Factor:
80
Frequency Response:
5Hz – 20kHz
SNR:
82dB
Crossover LP:
80Hz – 20kHz
Crossover HP:
5Hz – 80Hz
Width:
5.5 in / 22,5 cm
Length:
7.4 in / 19 cm
Height:
2.8 in / 7,1 cm
Weight:
2 Kg
