3000.1 EVO6

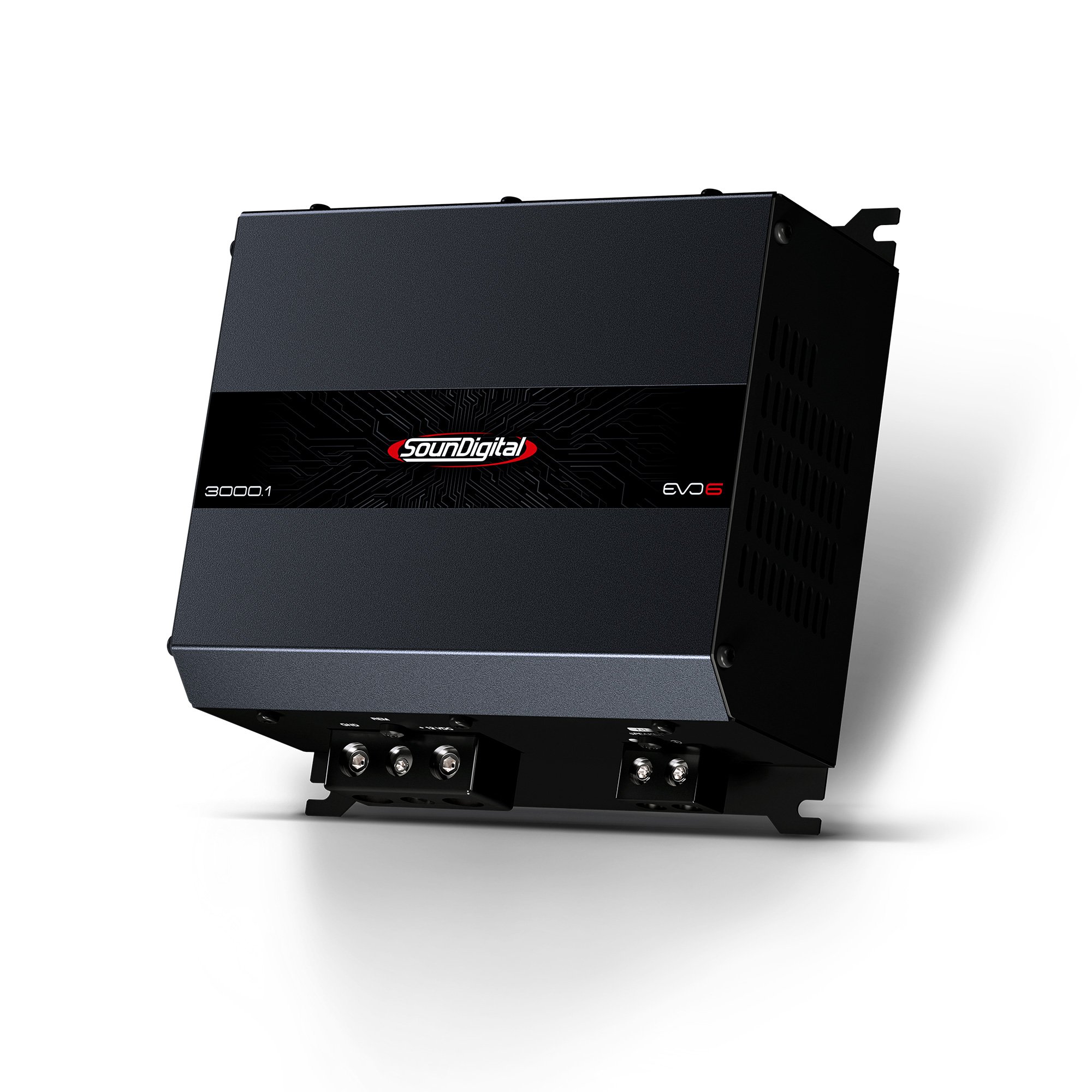

The 3000.1 EVO6 is a compact, modern amplifier that delivers 3000W RMS of power over 1 channel.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Available in versions:
Instruction manualGeneral Specifications
+
-
3000.1 EVO6 – 1 OHM
Power @ 4Ω: 1 x 1300W RMS
Power @ 2Ω: 1 x 1900W RMS
Power @ 1Ω: 1 x 3000W RMS3000.1 EVO6 – 2 OHM
Power @ 4Ω: 1 x 1980W RMS
Power @ 2Ω: 1 x 3000W RMS
Power @ 1Ω: N/A3000.1 EVO6 – 4 OHMS
Power @ 4Ω: 1 x 3000W RMS
Power @ 2Ω: N/A
Power @ 1Ω: N/AFrequency Response (-3dB):
5Hz ~ 20kHz
Low Pass Filter (12dB/octave):
80Hz ~ 20kHz
High Pass Filter (12dB/octave):
5Hz ~ 80Hz
Operating Voltage:
10V ~ 16V
SNR:
>90dB
Input Sensitivity (RCA):
200mV
Current Draw (music):
140A
Current Draw (max.):
280A
Damping Factor (@100Hz nominal impedance):
>2000
Power Cable:
35mm² (2 AWG)
Speaker Cable:
1Ω: 6mm² (9 AWG)
2Ω: 4mm² (11 AWG)
4Ω: 2.5mm² (13 AWG)Recommended Fuse* (music):
150A
Recommended Battery (minimum):
150Ah
Width:
5.92 / 15,5 cm
Lenght:
5.80 / 14,7 cm
Height:
2.38 / 6,6 cm
Weight:
1.47 kg (3.24 lb)
