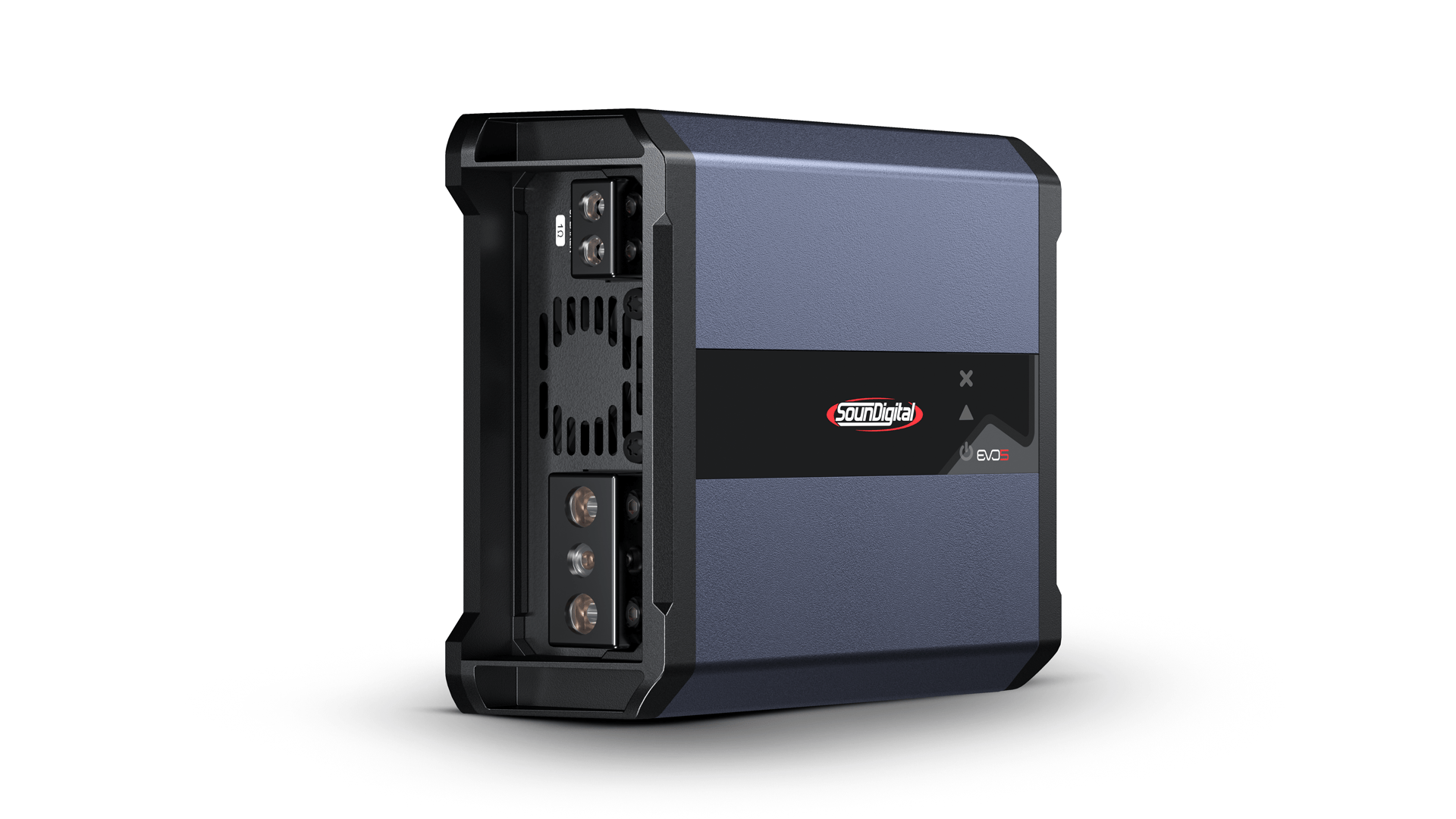

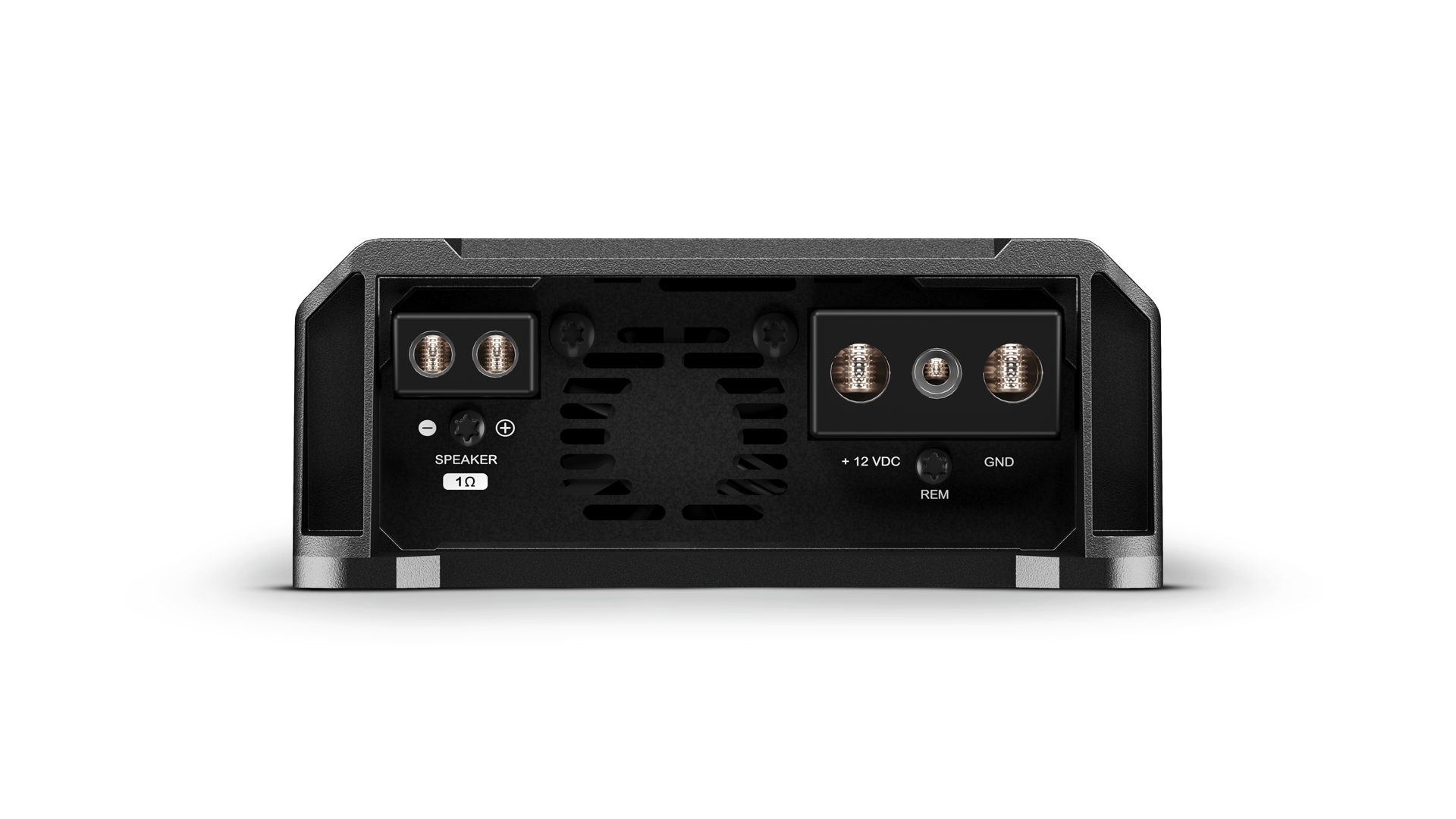

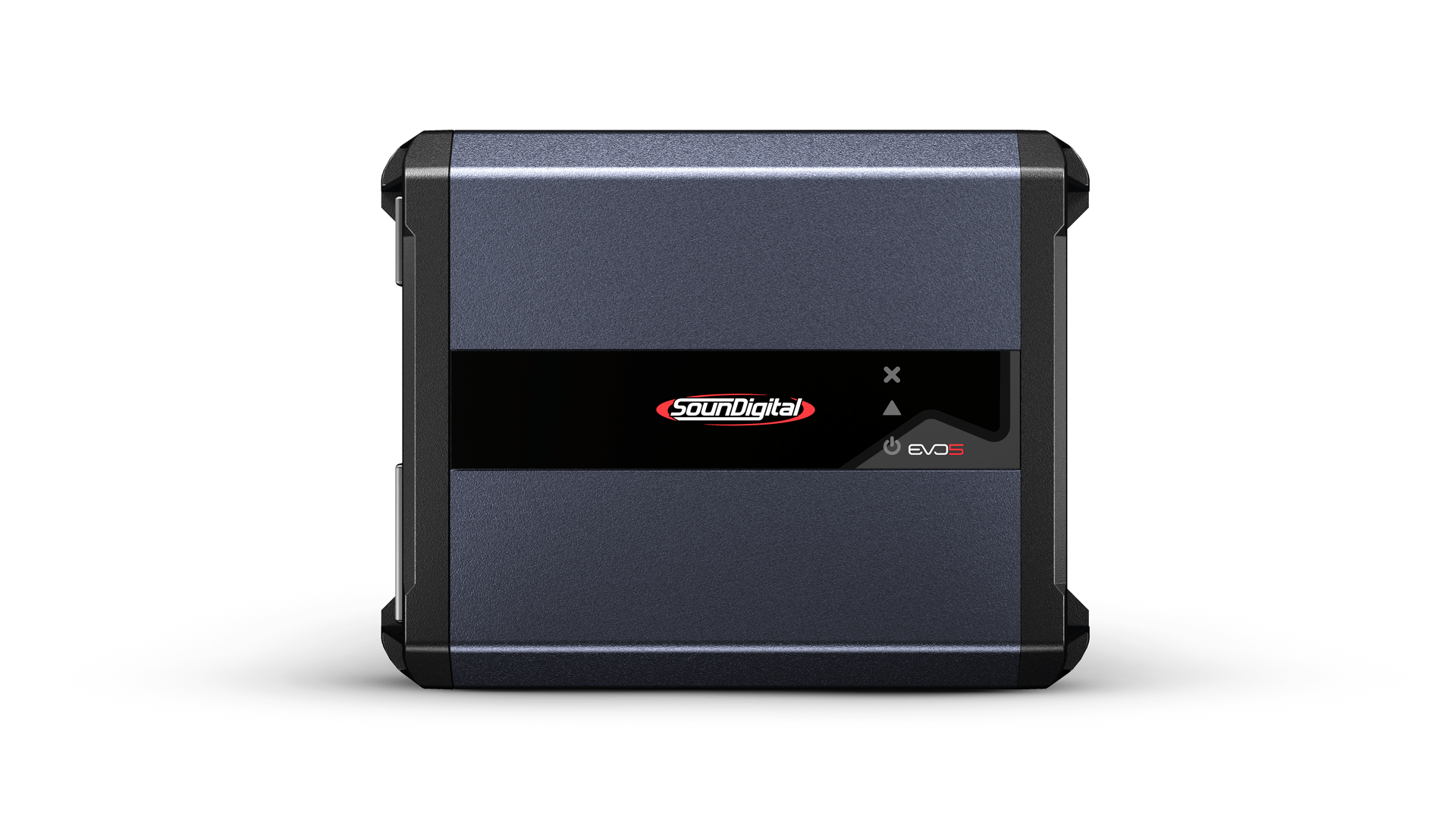

1600.1 EVO 5

The 1600.1 EVO 5 is a compact, modern amplifier that delivers 1600W RMS of power over 1 channel.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Available in versions:

Instruction manual

General Specifications

1600.1 EVO 5 – 1 OHM
Power @ 4Ω: 1 X 697 WRMS
Power @ 2Ω: 1 X 1065 WRMS
Power @ 1Ω: 1 X 1600 WRMS
1600.1 EVO 5 – 2 OHMS
Power @ 4Ω: 1 X 1065 WRMS
Power @ 2Ω: 1 X 1600 WRMS
Power @ 1Ω: N/A
1600.1 EVO 5 – 4 OHMS
Power @ 4Ω: 1 X 1600 WRMS
Power @ 2Ω: N/A
Power @ 1Ω: N/A
Frequency Response (-3dB):
5Hz ~ 25kHz
Subsonic Filter:
5Hz ~ 80Hz
Low Pass Filter:
50Hz ~ 1kHz
Bass Boost:
0dB ~ 12dB @ 50Hz
Operating Voltage:
9V ~ 16V
Signal-Noise Ratio:
1Ω: 93.7dB
2Ω: 95dB
4Ω: 93.4dB
Input Sensitivity:
0.2V ~ 2V
Current Draw (Music):
1Ω: 75A
2Ω: 75A
4Ω: 75A
Current Draw (Max):
1Ω: 149A
2Ω: 149A
4Ω: 149A
Total Efficiency:
85%
Damping Factor:
>2000
Power Cable:
16mm² (5 AWG)
Audio Output Cable:
1Ω: 2 x 4.0 mm² 11 AWG
2Ω: 2 x 2.5 mm² 13 AWG
4Ω: 2 x 1.5 mm² 15 AWG
Recommended Fuse (Music):
100A
Recommended Battery:
100Ah
Width:
13.6 cm / 5.4 in
Length:
18 cm / 7.1 in
Height:
5.48 cm / 2.1 in
Weight:
1.13 Kg
