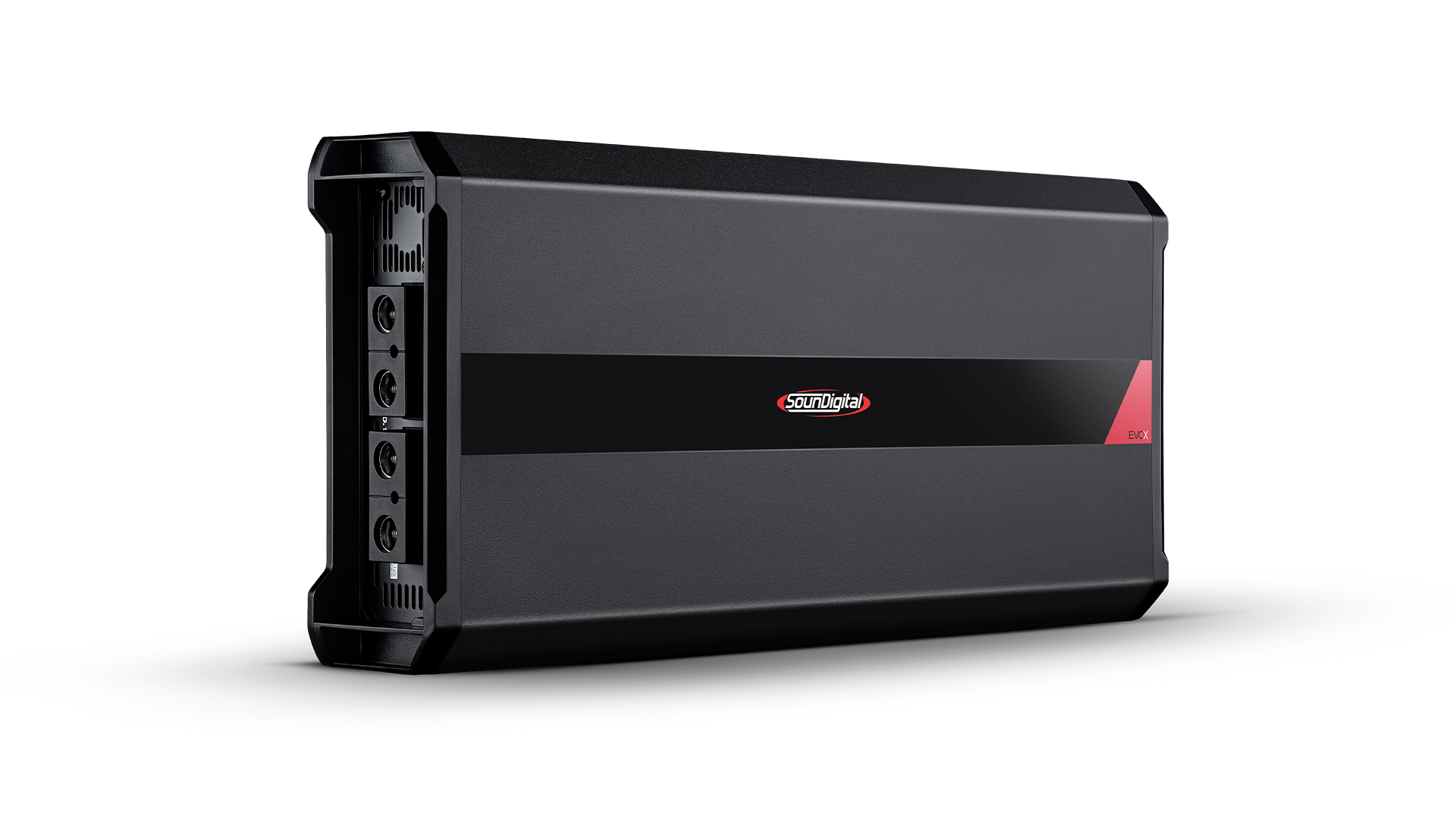

12000.1 EVOX
The 12000.1 EVOX is a compact, modern amplifier that delivers 12000W RMS of power over 1 channel.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Available in:
Instruction manualGeneral Specifications
+
-
12000.1 EVOX – 1 OHM
Power @ 4Ω: 1 X 5227W RMS
Power @ 2Ω: 1 X 7920W RMS
Power @ 1Ω: 1 X 12000W RMS12000.1 EVOX – 2 OHMS
Power @ 4Ω: 1 X 7920W RMS
Power @ 2Ω: 1 X 12000W RMS
Power @ 1Ω: N/AFrequency Response (-3dB):
5Hz ~ 500Hz
Subsonic Filter (12dB/octave):
5Hz ~ 30Hz
Low Pass Filter (12dB/octave):
50Hz ~ 500Hz
Operating Voltage:
8V ~ 16V
SNR:
76dB
Input Sensitivity (RCA):
0.2V ~ 4V
Current Draw (music):
627A
Current Draw (max):
1253A
Total Efficiency:
76%
Damping Factor (@100Hz nominal impedance)
200
Power Cable:
95mm² (0000 AWG)
Speaker Cable:
16mm² (5 AWG)
Remote Cable:
1.5mm² (15 AWG)
Recommended Fuse (music):
2 x 350A
Recommended Battery (minimum):
650Ah
Width:
8.9 in / 22.4 cm
Length:
20.8 in / 53 cm
Height:
2.8 in / 7.1 cm
Weight:
7.3 kg / 16.1 lb
